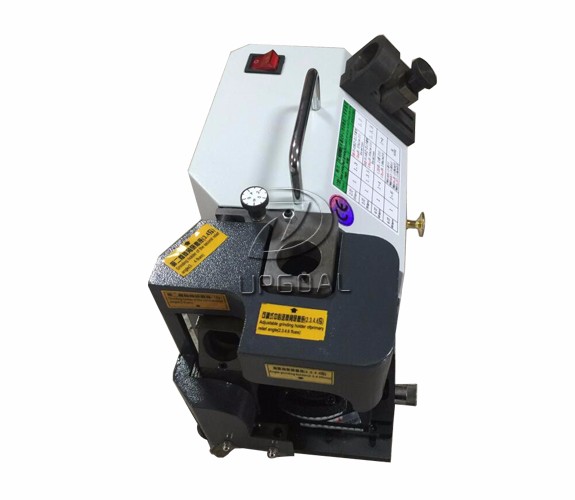

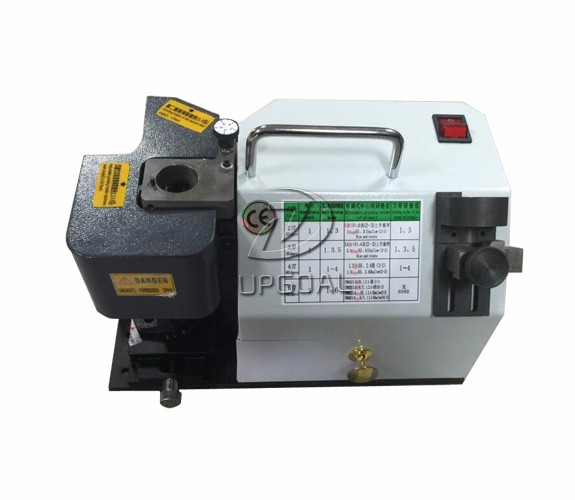

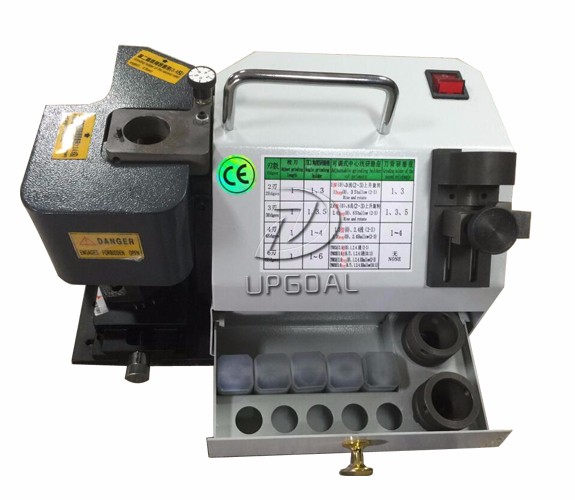

Portable Easy Using End Milling Tools Grinding Machine

Brief Introduction:

Model: UG-1313
end milling tools grinding machine
Portable easy type
For diameter 3-13mm 2/3/4/6 edge

INQUIRY NOW

1. The UG-313 end milling tools grinding machine is fool portable type,can be used for 2 edge,3 edge, 4 edge, 6 edge universal end,
also can make the edge directly with tungsten rod milling tools.


2. Precision and fast grinding, easy to operation, no need skills, then can do good grinding.

3. Equipped with diamond grinding wheel, just a wheel can complete all the processes, accurate angle, long life, cost savings, improve the use of efficiency.


Model

UG-313

Milling diameter

ф3-ф13mm

Power and voltage

AC220V/300W,single phase

Speed

4500RPM

Apex angle

0°-5°

Diamond grinding wheel

Specialized SDC tungsten steel using

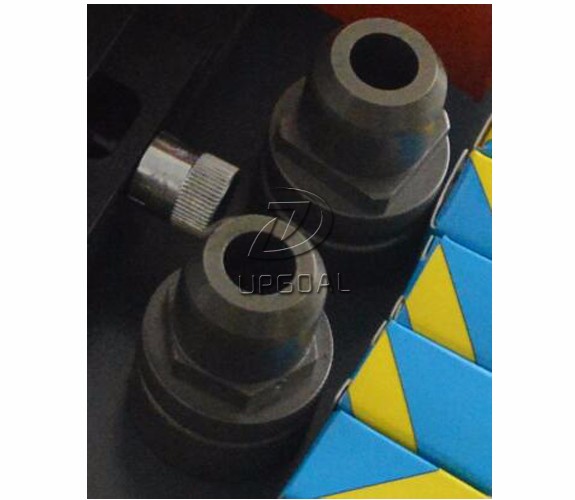

Standard collets

ф4、ф6、ф8、ф10、ф12,5 pcs

Machine size

305×165×220mm(Length * Width * Height)

Packing size ( carton paper case)

366*245*250(Length * Width * Height)

Gross weight

13kg
