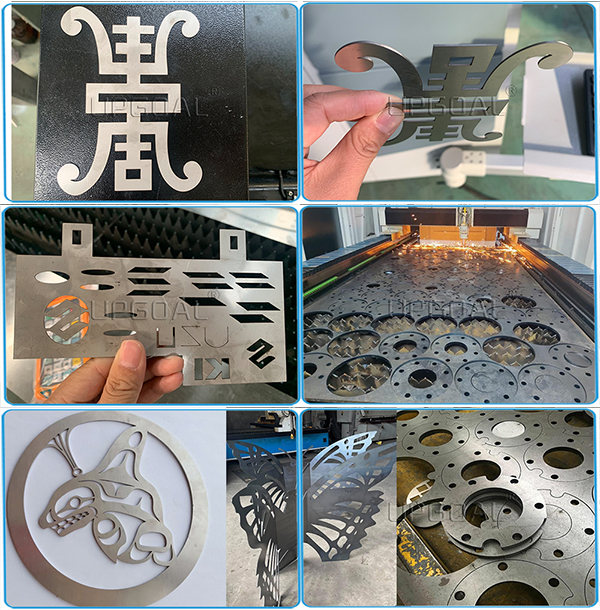

Cutting a wide variety of metal plates, tubes, mainly applicable to stainless steel, carbon steel, manganese steel, galvanized sheet, a variety of alloy paltes, rare metal and other materials cutting.
Industry of kitchen ware, lamps and lanterns, panel beating, metal cabinets, auto parts, refrigerators, air condition, elevators, hotel metal supplies processing, etc.

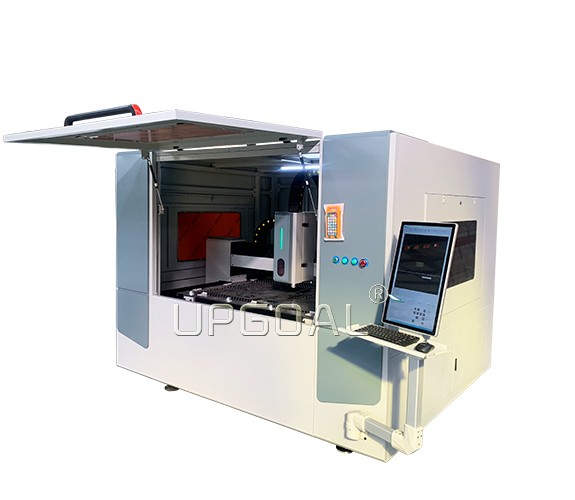

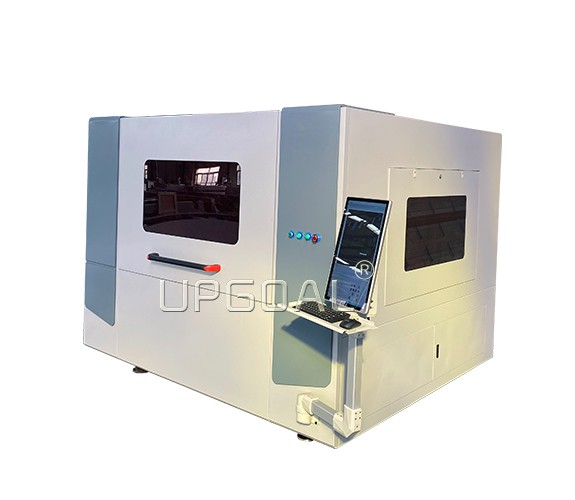

1. Full-enclosed small fiber laser cutting machine with high precision, suitable for cutting small precision parts. The whole fiber laser cutting machine adopts the new three-dimensional protective cover to protect the user's body and make the work more efficient and safe. The fiber laser cutting machine can be used in the home, it is the preferred choice for home workers and high-precision device processing.
2.High-rigidity heavy chassis,reducing the vibration generatedduring high-speed cutting greatly. High-performance vaiation aluminium crossbeam,after finite element analysis,realizes highly accelerated circular arc cutting speed.

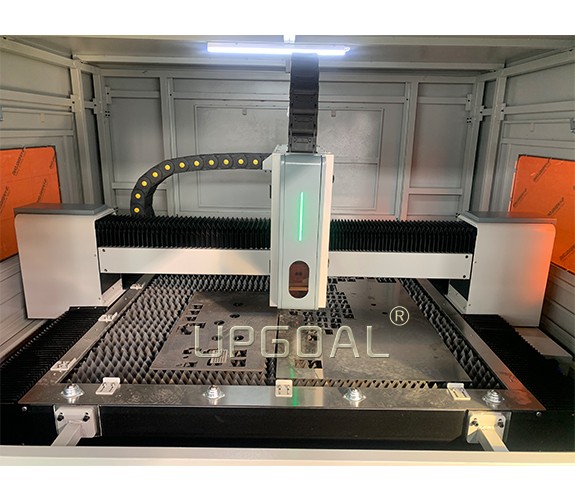

3.Gantry double-drive structure,with imported Hiwin, Taiwan Linear square guide rail with ball bearing slide block which ensure high weight capacity, high precision, smooth and steady running.Taiwan YYC rack&pinion transmission system for XY-axis,improves the production efficiency.

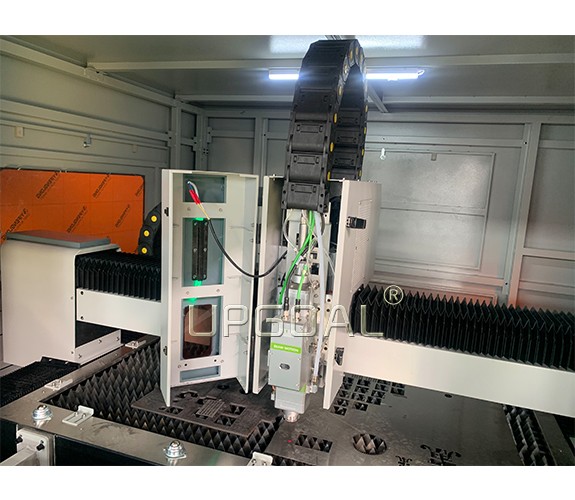

4.The famous RAYTools BMH110 auto focusing fiber laser cutting head does not come into contact with the surface of the material and does not scratch the workpiece.
5. Adopted stable RAYCUS/MAX brand 1500W fiber laser source, photoelectric conversion rate is high, high beam quality, work life of more than 100,000 hours, no maintenance costs..
6. With strong tooth type cutting blade table, can stand more thickness sheet , and ensure cutting performance, equipped with feeding wheels is convenient to load materials.
7. The CypCut 2000C control system is embedded with a rich memory of laser cutting setting references, flexible layout designs and tool path editing, data import/export,bridging, coedge, beam compensation, curve smoothing, division, caombination, automatic identification of exterior and interior modes and so on, compatible, with laser source brands such as IPG, SPI, JK, Raycus, etc.
8. Adopted Fuji Japan850W & 400W servo motor and driver for machine, the servo motor with SHIMPO reducer, more accurate, It realizes closed-loop control of position, rotating speed is more faster, general rated speed can reach 2000~3000 rpm; With high strong anti-overload capability, and smooth operation at low speed, no stepping operation similar to stepper motor when running at low speed.

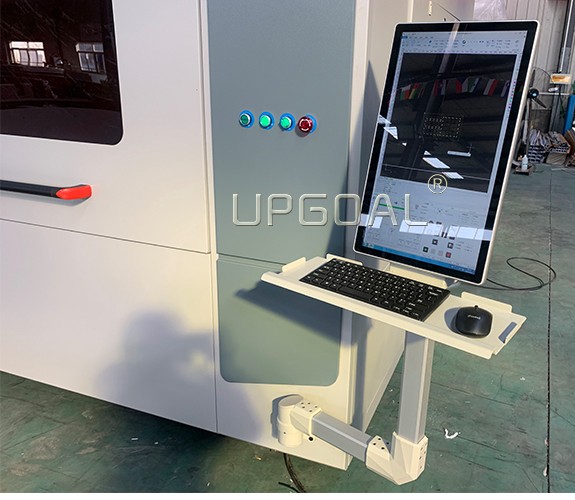

9. Industrial CPU with moving bracelet, very convenient to operate
10. S&A Teyu Industrial chiller CWUL-1500, ensuring fiber laser and laser head can be cooled quickly to ensure that the laser machine has stable power even working at high temperature, high efficient and fast operation.
11. Auto lubrication system and air blower 750W for blow- off.
12. Adopted SMC Japan proportional valve, improve cutting accuracy.
13.High precision, fast speed, narrow slit, minimum heat affected zone, smooth cut surface and no burr.
14. The slit is the narrowest, the heat affected zone is the smallest, the local deformation of the workpiece is very small, and there is no mechanical deformation.
15.It has good processing flexibility, can process any pattern, and can cut pipes and other profiles.
16. Non-deformable cutting can be performed on materials of any hardness such as steel plates, stainless steel, aluminum alloy plates, and hard alloys.
