Stone Glass Laser Engraving Machine
Stone Glass Laser Engraving Machine
Tombstone Photo Co2 Laser Engraving Machine 1300*900mm

Brief Introduction:

Model: UG-1390L
For tombstone photo engraving
EFR F2 80W Co2 laser tube
RuiDa 6445G control system
Split type for heavy stone

INQUIRY NOW

Applications

Application industry: Marble engraving, Advertisement, Gift Package, Model.

Application Materials: Acrylic,crystal, marble, wood, paper, cloth, leather, rubber, glass, ceramic tile.



Features

Separated Structure

Upper and lower separation design. The Upper parts can be taken down and set up onto the stone as solution for heavy stones while materials loading difficulties and platform load bearing is limited.


Manual Lifting Handle

Distance between the two parts can be adjusted which is Much more convenient for thicker materials processing.

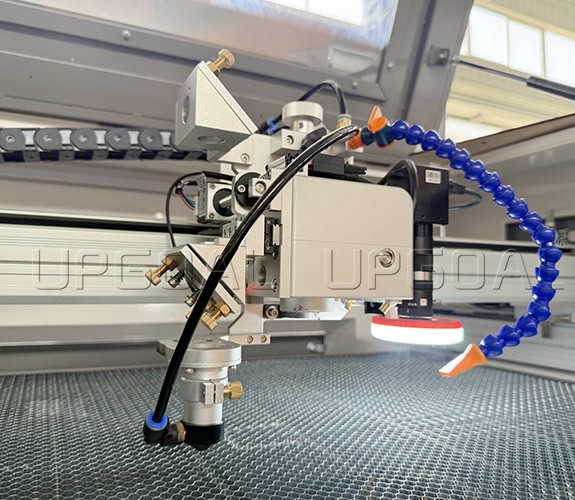

Laser Head

Newly design, More in according with mechanical engineering. Safe and Durable. Simple Operation with high engraving/cutting speed and high laser power convert ratio.

Laser Tube

Adopted high quality EFR F2 80W Co2 laser tube,  long working time time and stable

Working Table

Honey Comb Table: applicable to various soft materials with good adsorption effect and low reflection ratio.

Beam Path System

Adopting imported focus lens with high luminousness and mirror with high relativity ensure stable power transference.

Motion System

Imported High precision, low friction force and stand wear and CSK Taiwan linear square guide rails and blocks with 3M belt ensured stable transmission, lower noise

Operation System

Advanced USB port RuiDa RDC 6445G DSP control system with large inner memory device and Fast curve cutting and Optimized shortest path function, Greatly improved the working efficiency .

With full-process automatic laser power attenuation compensation , ensuring the performance consistency of engraving/cutting. The High speed motion control program with pre-buffering function enhances productivity more.

Completely compatible with various CAD&CAM softwares such as AuotCAD, CorelDAW, supporting the designs directly exporting. With advanced Color management and defining the working turns with different colors , All or a part work can done in one time.

Rationalized placement of the electronic parts. Optimized heat dissipation effect.

Cooling System

Industrial chiller CW-3000, ensuring the laser tube long time continus working.


Effective working area

1300*900mm

Laser Type

Co2 sealed-off laser tube

Laser tube power

80W ( EFR F2)

Working table

Honey comb

Driver mode

3 phases stepper motor and Driver, Yako brand

Guide rail

Linear square guide rail ( CSK,Taiwan)

Transmission

Belt transmission

Control panel

English

Laser output control

1-100% software setting

Engraving speed

0-60000mm/min

Cutting speed

0-10000mm/min

Control system

RuiDa RDC 6445G

Control software

RDWorks V8

Design software when delivery

CorelDraw

Control panel

DSP offline

Resolution accuracy

< 0.01mm

Location precision

< 0.01mm

Highest scanning accuracy

2500DPI

Type of cooling

Industrial chiller CW-3000cooling

Water protection system

Yes

Blow-off system

Air pump and air blower

Working temperature

0-45 °C

Operating humidity

5-95% (without condensed water)

Supporting picture format

PLTDSTDXFBMP, DWGAILAS,etc

Voltage

AC220/110V +10% 50/60Hz, single phase

Certificate

CE/FDA
