Applications

Woodworking products, advertising signs, MDF board, cutting engraving Photo frame, sculpture the sofa and the head of a bed, All kinds of wood door carvings, Large furniture relief engraving, Dalle hollow out  and simple copper aluminum plastic board, etc.

Features

1.Strong welded T type steel tube structure as a whole with vibration Temper aging treatment ensures no deformation for long time.

2.Imported Hiwin, Taiwan Linear square guide rail with ball bearing slide block which ensure high weight capacity,  high precision, smooth and steady running. Adopt imported precision ball screws, tools feeded with more accuracy.

Helical gears pinion and rack transmission for X and Y axis, higher running speed and efficiency, saving cost.

Z- axis with precision ball screw, high precision and more durable.

3. Large power 5.5kw water cooling spindle which is with stable performance, lower noise, powerful and high torque, matched with high-performance frequency inverter.

4. China famous Chuangwei CW-86BYGH450B stepper motor for XYZ-axis, 86BYGH450C stepper motor for rotary axisand Leadshine DMA860H stepper driver,  high precision, fast speed and more stable, dual motor Driven Y axis with traveling speed up to more than 25000mm/min.

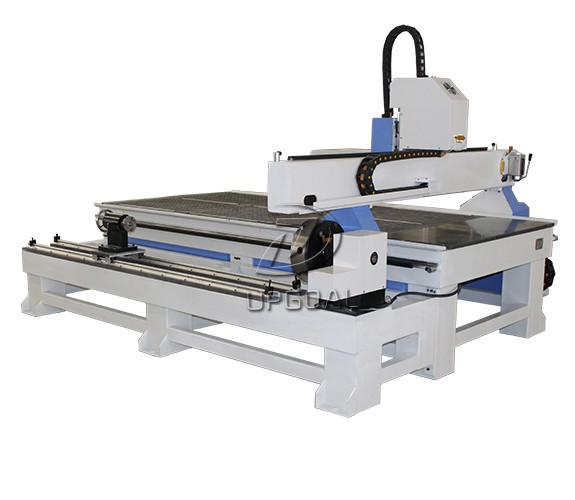

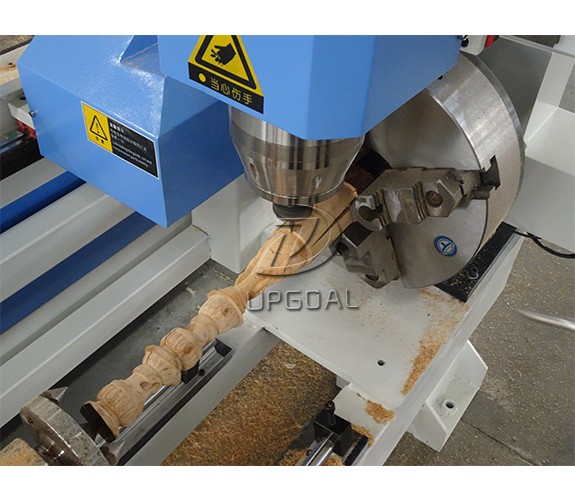

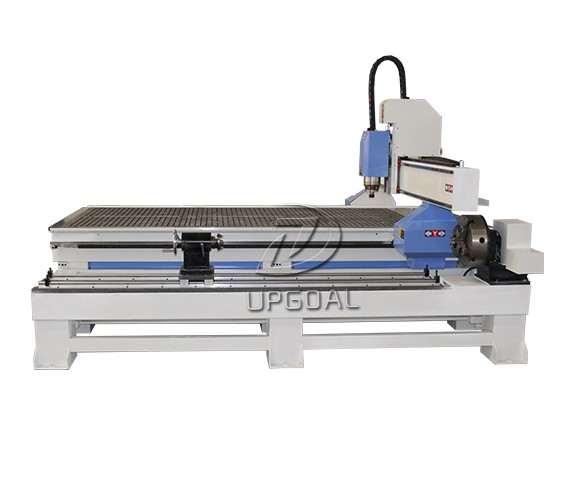

5. Extended gantry & independent removable rotary axis holder, with diameter 300mm, working length 2500mm, cylinder processing is in a special zone, each time, no need put the heavy rotary axis on the working table, saving labor and improving working efficiency.

6. Vacuum adsorption system with 5.5kw air cooling vacuum pump,  vacuum table which is divided into 6 zones,can adsorb different size materiel from small to big, saving materials load-unloaded time.

7. RichAuto DSP A11E offline control system with USB interface which is completely off from Computer. More Humanized design with Simple and Convenient Handle type operation.With per-calculation rule, fully excavating potentialities of motors. Enable high processing speed, synchronization of Curve and straight line, more perfect curve working and Spindle start up and stop automatically.

8. With dust collector, 3.0kw, double bags, sucking dust, milling dust, saw dust, keeping machine cleaning.

9. Semi-auto lubrication system,more convenient for maintenance.

10. Auto tool calibration, more convenient for each time Z-axis 0 point setting.

11. Favorable compatibility with various CAM softwares such as Type3/Artcam/Mastercam/Caxa. With intelligent over limit protection function which can stop the mechanical collision due to unproper size given to the design.

12. With the function of Break-point memory,power failure resuming and automatic

home/origin correction function, effectively ensure long time working precision.
