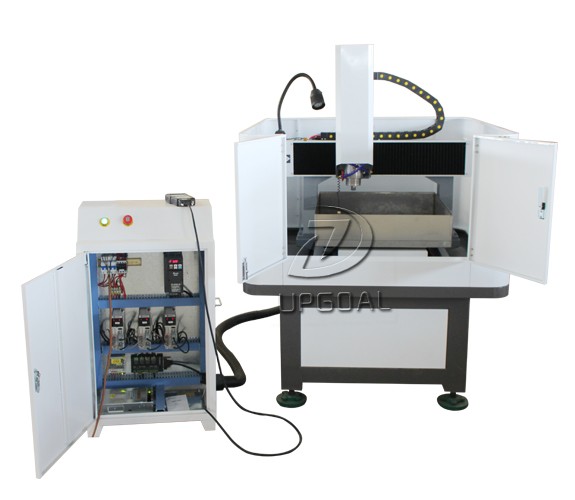

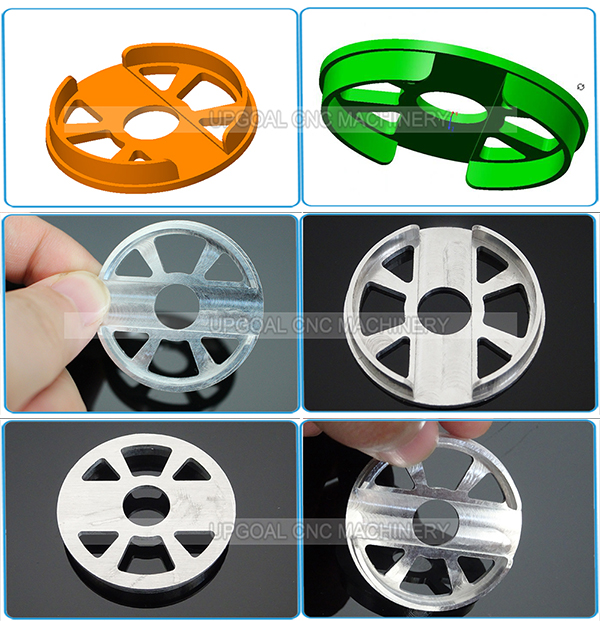

CNC Aluminum Milling Cutting Machine for Making Aluminum Air Propeller Cover

Brief Introduction:

Model: UG-6060
Heavy duty cast iron structure
3.2kw water cooling spindle
Cast iron T slot working table
NcStudio or DSP A11 offline control
Elastic stainless steel Y-axis dust proof

INQUIRY NOW

Applications

Mould of Copper, Iron, aluminum, stainless steel. Shoe mould, mobile mould, Red Copper electrode, Building model, name tag, copper stamp.


Features

1. Heavy duty cast iron as a whole with vibration Temper aging treatment ensures no deformation for long time.

2.Cast iron Working table with platform moving type. Durable without deformation

enable positioning more preciously.

3.Equipped with  Hiwin Taiwan linear square guide rail for XYZ-axis, effectively improved the precision.

4.Three axis with precision lead ball screw transmission ensure the engraving speed and accuracy.

5.High variable speed China HQD 3.2KW water cooling spindle, big torque, longer life, strong cutting

ability and continuous work for long time.

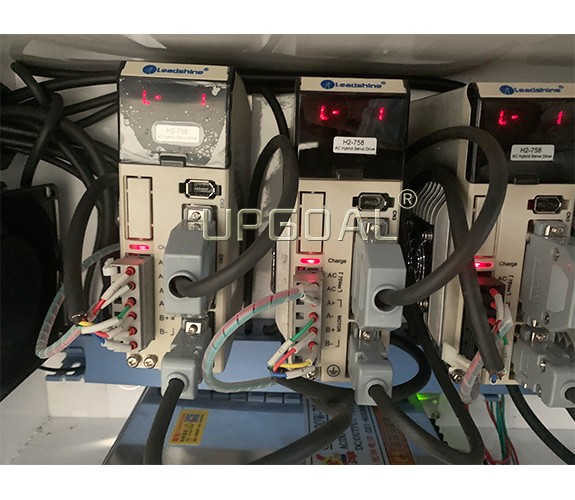

6.Leadshine hybrid servo motor and hybrid servo driver H2-758 for XYZ-axis, compared with the stepper motor, ensuring high speed and precision working

7.RichAuto DSP A11E offline control system, when working no need computer, save the files into USB disk, more convenient and easy to operate.

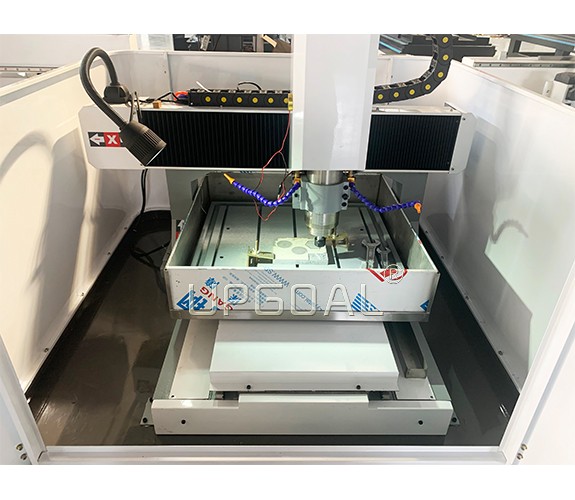

8.Stainless steel water slot cooling system, ensuring the cooling for the metal & hard materials, improving the processing precision.

9.Half closed cover design, and unique dust&water Proof design effectively protect the transmission parts from rust, dust &dirt.

10. Rationalized placement of the electronic parts. Optimized heat dissipation effect. Adopt high quality electronic parts, minimizing fault rate.

11.Auto lubrication system, more  convenient for machine lubricating.

12. Auto tools calibration, conveineint for working

13.With the function of Break-point memory, power failure resuming and automatic home/orgin

 correction function.Effectively ensure long time working precision.

14.Working Pause, Speed adjust, Working depth adjust at any time while working. Preview the 2D&3D working result With simulation function. Variable Speed is suitable for various materials and industry.

15.Favorable compatibility with various CAM softwares such as Type3/Artcam/Mastercam/Caxa. With intelligent over limit protection function which can stop the mechanical collision due to unproper size given to the design.


Effective working area

600(X)mm*600Y)mm*200(Z)mm

Materials

Heavy duty whole cast iron structure

Protection cover

Half cover

Working table

Cast iron with T slot

Moving type

Platform moving

Guide rail

Linear square guide rail ( Hiwin, Taiwan)

Transmission

Lead ball screw for XYZ-axis

Driving mode

China leadshine hybrid servo motor and driver

( H2-758)

Spindle motor

3.2kw water cooling spindle( HQD, China)

Spindle speed

0-24000rpm

Inverter

Sunfar

Voltage

AC 220V± 10%, 50/60Hz, sinle phase or

AC 380V± 10%, 50/60Hz, three phases

Traveling speed

8000mm/min

Engraving speed

6000mm/min

Machine accuracy

0.02mm

Control system

DSP offline control system, RichAuto A11E

Suitable software

Artcam, Type3, Ucancam V9,etc

Carving Instructions

G code *Uoo *mmg *plt HPGL

Running environment temperature

0-45 ℃

Relative humidity

30%-75%

Cooling system

Stainless steel water slot cooling system

Tool calibration

Automatic

Lubrication systemAutomatic

Certificate

CE
