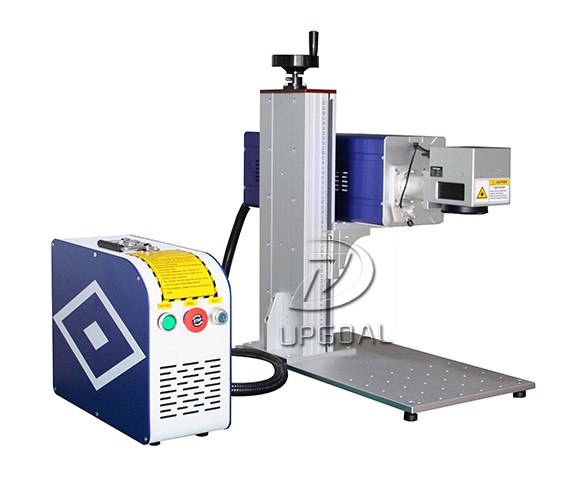

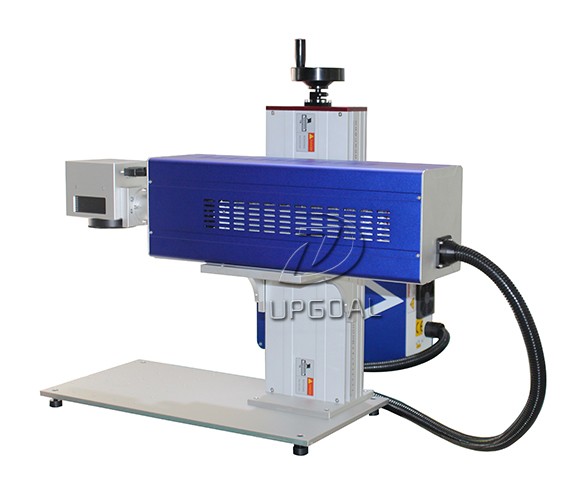

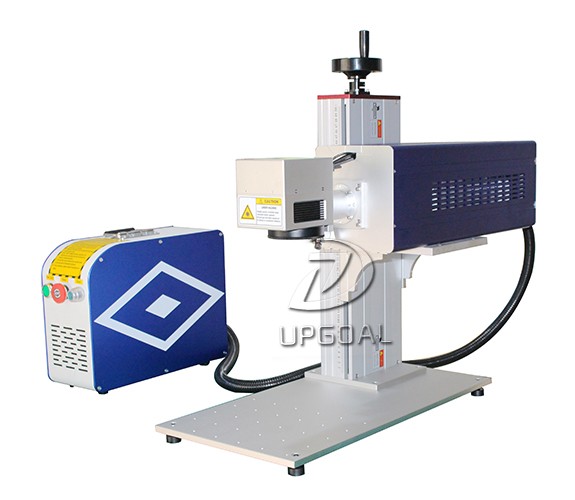

Co2 RF Laser Marking Machine
Co2 RF Laser Marking Machine
Desktop Portable Silicone Bands Customized Logo Letter Laser Marking Machine

Brief Introduction:

Model: UG-40RF
Co2 RF marking 40W
Silicone bands marking
140*140mm marking area
Original EzCad marking software

INQUIRY NOW

Applications

Mainly used for engraving non-metals, widely used in food packaging, beverage packaging, pharmaceutical packaging, architectural ceramics, clothing accessories, leather, fabric cutting, craft gifts, rubber products, electronic component packaging, shell nameplates, etc.

Features

1.High speed galvanometer, ultrahigh speed, high precision, stable performance, can continuous working for 12 hours.

2.Special all sealed cavity structure, preventing the dust into laser cavity, reducing the machine failure rate.

3. High precision and fast speed marking, marking depth can be controlled casually.

4. Suitable for all kinds of non-metal products marking.

5. No consumable

6. Marking is clear, and not easy to wear and tear

7. Marking software works in Windows system, Chinese & English interface, compatible with AUTOCAD, CORELDRAW、PHOTOSHOP, ect softwre and  all kinds of file format, such as PLT、PCW、DXF、BMP, etc, can also directly use SHX, TTFWord stock, casually design the pattern from computer.





Marking parameters

Marking area

140*140mm

Marking speed

0-7000mm/s

Marking depth

0.01-12mm(depends on materials

Minimum character

0.002-0.40mm

Minimum line width

0.008mm

Lifting height

500mm±2mm)





Laser Character

Laser fiber/wave length

CO2RF laser /1060nm

Out put power

40W/60W

Power stability8h)

˂±1%ms

Light beam qualityK2

˂1.2

Repetition frequency

0-100KHz

Laser safe glass

ClassIV

Others

System protection level

IP54

Cooling method

30W air cooling

Voltage

AC220V/110V, 50/60Hz, single phase

Total power

0.8KW

Certificate

CE


made in China 描述2图.jpg
