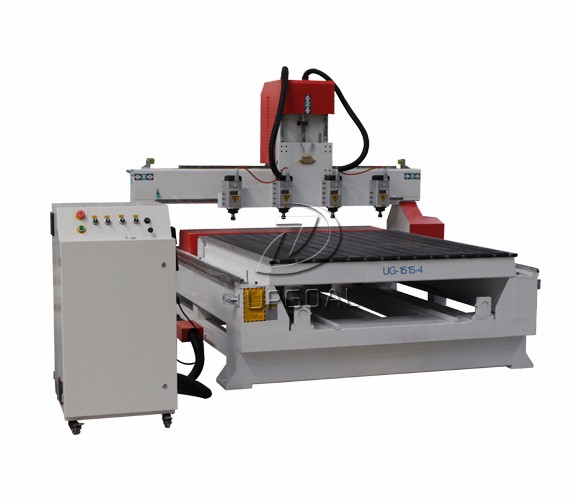

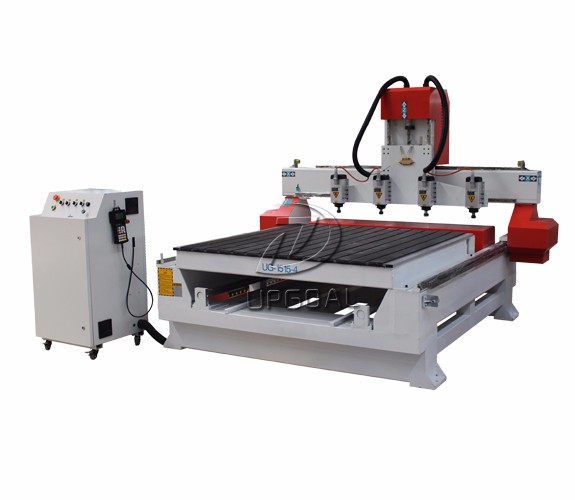

Multi Head and Cylinder CNC Router
Multi Head and Cylinder CNC Router
4 Spindles 4 Rotary Axis Cylinder Flat Wood Carving Machine with NK105 4 Axis Offline Control

Brief Introduction:

Model: UG-1515-4
Flat aluminum T slot working area: 1500*1500mm
Rotary axis: diameter 300mm at maximum, processing length 1500mm
Yaskawa Japan servo motor and driver
China 3.5kw air cooling spindle
NK105 4 axis offline control system

INQUIRY NOW

Applications

Woodworking products, advertising signs, MDF board, cutting engraving Photo frame, sculpture the sofa and the head of a bed, All kinds of wood door carvings, Large furniture relief engraving, Dalle hollow out  and simple copper aluminum plastic board, etc.


Features

1.Welded steel T type structure as a whole with vibration Temper aging treatment ensures no deformation for long time.Cast iron Gantry, the structure is strong and stable.

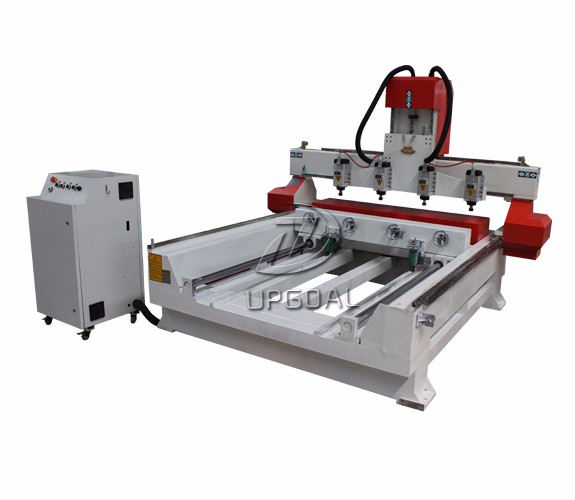

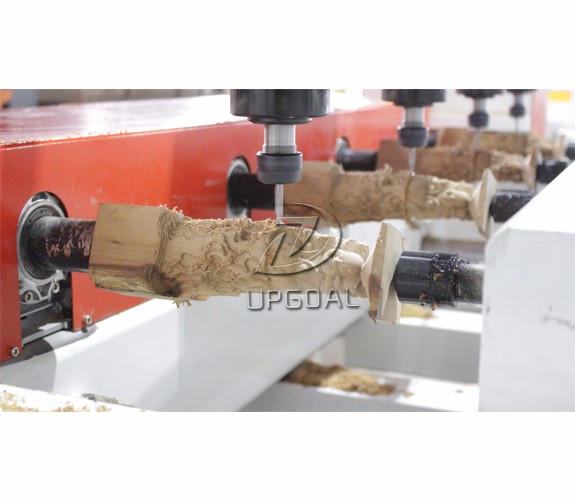

2.One Z-axis with 4 spindle heads, and corresponding 4 rotary axis( maximum diameter 300mm, working length 1500mm), andremovable 1500*1500mm aluminum T slot working table, can for 4 pcs flat or cylinder proecessing at same time, much improving the working efficiency.

3. Imported Hiwin, Taiwan Linear square guide rail diameter 25mm for XYZ-axis with ball bearing slide block wich ensure high weight capacity,  high precision, smooth and steady running. Adpot imported precision ball screws, tools feeded with more accuracy.

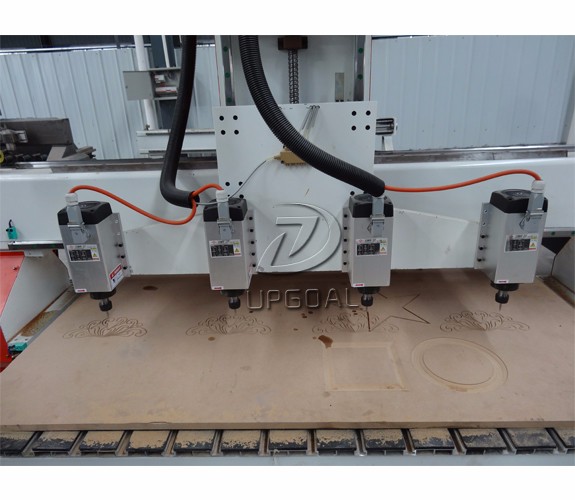

4.3.5KW China cooling spindle which is with stable performance, low noise and high torque, matched with high-performance Frequency Inverter. 4 pcs on one Z-axis structure, each time can process 4 same items, improving the efficiency.

5.Japan Yaskawa servo motor and driver for XYZ-axis,  high precision, fast speed and more stable, dual motor Driven Y axis with traveling speed up to more than 25000mm/min.

6. Helical gears Pinion with Racks type transmission for X and Y axis, higher running speed and efficency, saving cost. Z- axis with precision ball screw, high precision and more durable.

7.NK105 G3 4 axis offline control system with USB interface which is completely off from computer. More Humanized design with Simple and Convenient Handle type operation.With pre-calculation rule, fully excavating potentialities of motors. Enable high processing speed, synchronization of curve and straight line, more perfect curve working and Spindle startup and stop automatically.

8.Semi-auto lubrication system more convenient for maintenance.

9. Favorable compatibility with various CAM softwares such as Type3/Artcam/Mastercam/Caxa. With intelligent over limit protection function which can stop the mechanical collision due to unproper size given to the design.

10. With the function of Break-point memory,power failure resuming and automatic home/origin correction function, effectively ensure long time working precision.




Effective working area

1500(X)mm*1500(Y)mm*200(Z)mm

Materials

More thickness steel pipe welded machine holder bed, cast iron gantry

Working table

Aluminum T slot working table, removable type

Moving type

Gantry moving

Guide rail

Linear square guide rail ( Hiwin, Taiwan)

Transmission

Helical rack &pinion for X Y -axis, Lead ball screw for Z-axis

Driving mode

Yaskawa Japan servo motor and driver for XYZ-axis

Spindle motor

3.5kw water cooling, 4pcs

Spindle speed

0-18000rpm

Inverter

Sunfar

Voltage

AC 380V+ 10%, 50/60Hz, three phases or

AC 220V+ 10%, 50/60Hz, single phase

Traveling speed

>25000mm/min

Engraving speed

>12000mm/min

Machine accuracy

0.01mm

Control system

NK105 4 axis offline

Suitable software

Artcam, Type3, Ucancam V9,etc

Carving Instructions

G code *Uoo *mmg *plt HPGL

Running environment temperature

0-45 ℃

Relative humidity

30%-75%

Lubrication system

Semi-auto

Tool calibration

By manual

Certificate

CE
