Multi Head and Cylinder CNC Router
Multi Head and Cylinder CNC Router

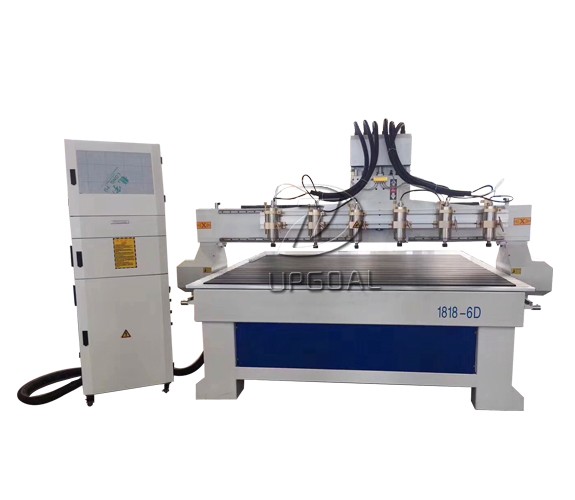

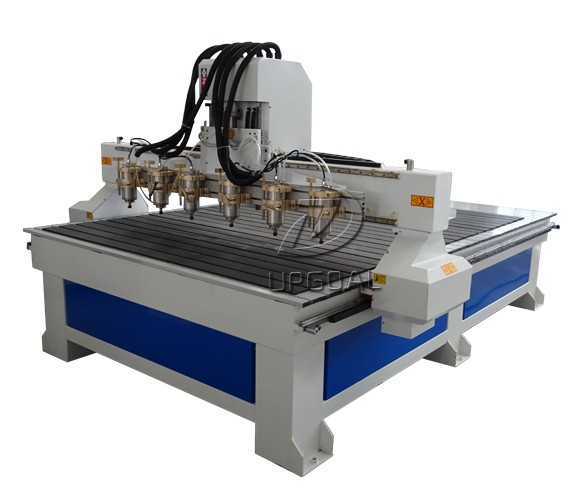

Woodworking Relief CNC Engraving Machine with 6 Spindle Heads

Brief Introduction:

Model: UG-1818-6
1800*1800*200mm working area

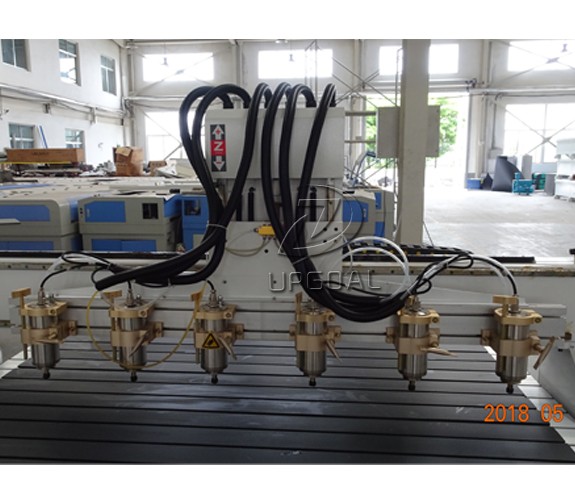

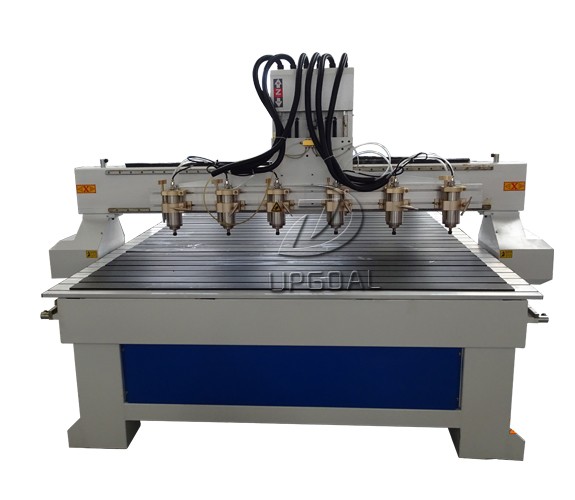

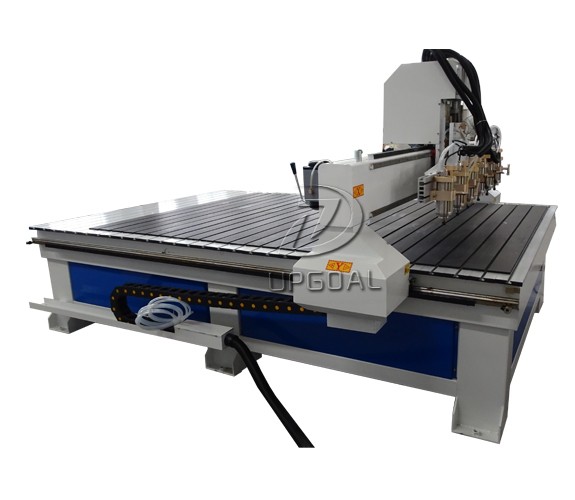

6 spindle heads on one Z-axis
Each head working area 280*300*200mm
Original PCI NcStudio control

INQUIRY NOW

Applications

Woodworking products, advertising signs, MDF board, cutting engraving Photo frame, sculpture the sofa and the head of a bed, All kinds of wood door carvings, Large furniture relief engraving, Dalle hollow out  and simple copper aluminum plastic board, etc.

Features

1.Welded steel T type structure as a whole with vibration Temper aging treatment ensures no deformation for long time.
2. One Z-axis with 6 pcs spindle heads, each time can process 6 pcs workpiece, much improving the working efficiency
3. Transverse aluminum alloy T slot working table, better for materials fixing.
4.2.2KW water  cooling spindle( China famous Hanqi brand), each spindle has auto calibration fixture,which is with stable performance, low noise and high torque, matched with high-performance frequency Inverter.

5.Imported Hiwin, Taiwan Linear square guide rail with ball bearing slide block which ensure high weight capacity,  high precision, smooth and steady running. Adpot imported precision ball screws, tools feeded with more accuracy.
6. Helical gears Pinion with Racks type transmission for X and Y axis, higher running speed and efficiency, saving cost. Z- axis with precision ball screw, high precision and more durable.

7. China famous Chuangwei brand steppermotor and Leadshine stepper driver for XYZ-axis,  high precision, fast speed and more stable, dual motor Driven Y axis with traveling speed up to more than 25000mm/min.

8. Original PCI NcStudio control system with its characteristic pre-calculation rule, fully excavates potentialities of motors. Enable high processing speed, synchronization of Curve and straight line, more perfect curve working. Which is doing well in Various application industry for its excellent control technique, capable for not only batch production but also personalized fabrication.


9.Semi-auto lubrication system more convenient for maintenance.

10. Favorable compatibility with various CAM softwares such as Type3/Artcam/Mastercam/Caxa. With intelligent over limit protection function which can stop the mechanical collision due to unproper size given to the design.

11. With the function of Break-point memory,power failure resuming and automatic home/origin correction function, effectively ensure long time working precision.



Effective working area

1800(X)mm*1800(Y)mm*200(Z)mm, each spindle working area about 280*1800*200mm

Materials

More thickness steel pipe welded machine holder bed& gantry

Working table

Transverse uminum T slot working table

Moving type

Gantry moving

Guide rail

Linear square guide rail ( Hiwin, Taiwan)

Transmission

Helical rack &pinion for X Y -axis, Lead ball screw for Z-axis

Driving mode

Stepper motorand stepper driver

Spindle motor

2.2kw water cooling, ER20, with auto adjusting fixture, 6 pcs

Spindle speed

0-24000rpm

Inverter

Sunfar

Voltage

AC 220V± 10%, 50/60Hz, single phase or

AC 380V±  10%, 50/60Hz, three phases

Traveling speed

>25000mm/min

Engraving speed

>12000mm/min

Machine accuracy

0.03mm

Control system

Original PCI NcStudio control

Suitable software

Artcam, Type3, Ucancam V9,etc

Carving Instructions

G code *Uoo *mmg *plt HPGL

Running environment temperature

0-45 ºC

Relative humidity

30%-75%

Lubrication system

Semi-auto

Certificate

CE
