Metal Non Metal Laser Cutting Machine
Metal Non Metal Laser Cutting Machine

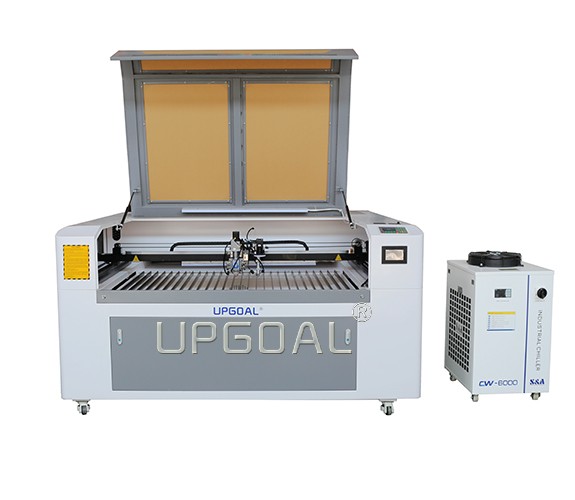

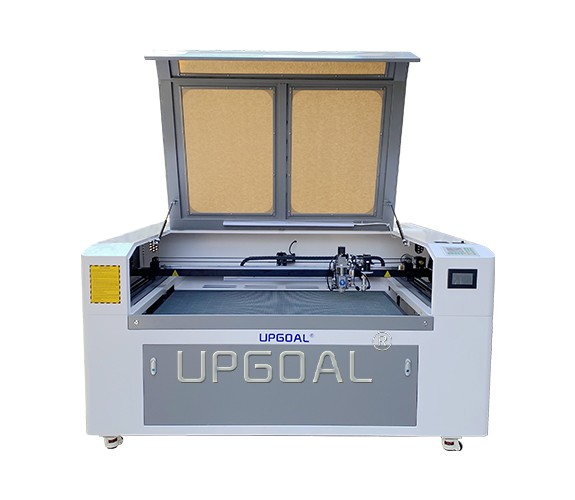

220W & 90W Mixed Metal Non Metal Co2 Laser Cutting Engraving Macine with CCD

Brief Introduction:

Model: UG-1390ML-2

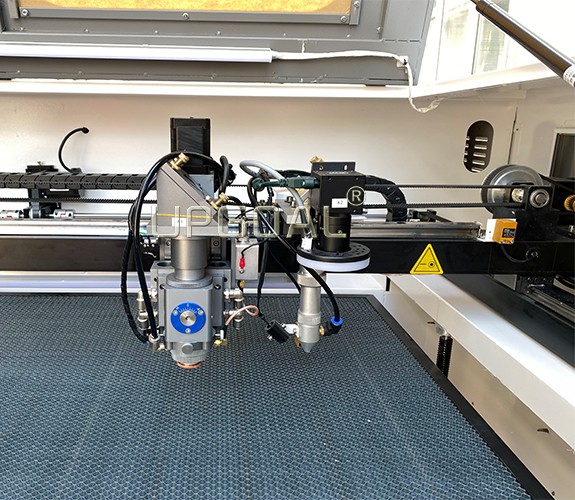

Dual 220W & 90W Co2 laser head
A1 220W mixed metal non metal laser head
A2 90W non metal laser engraving cutting head
Metal cutting ability 2mm
with CCD camera

INQUIRY NOW

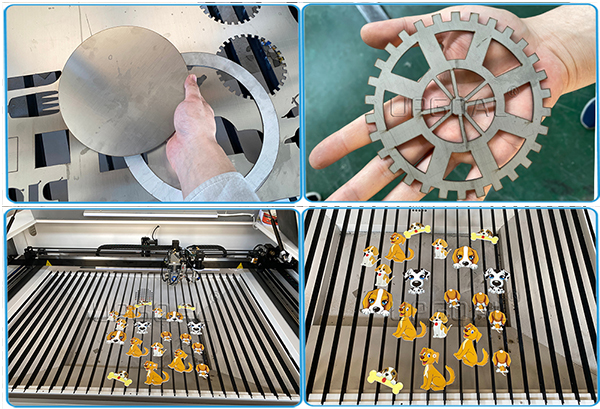

Applications

Applied to a certain of metal and non-metal materials Professional engraving/cutting such as stainless steel,carbon steel,wood,organic glass,plastic, cloth.

Widely used in the industry of Advertising, craft gift, shose, toys, garment, model, construction, package, paper and computerized embroidery &lipping.


Features

1. Welding machine bed with quenching treatment to remove away the stress .Milled by Large precision gantry milling machine ensured the accuracy.

2. Equipped with dual metal&non-metal laser cutting head. Stainless steel, carbon steel, acrylic and wood can be cut.

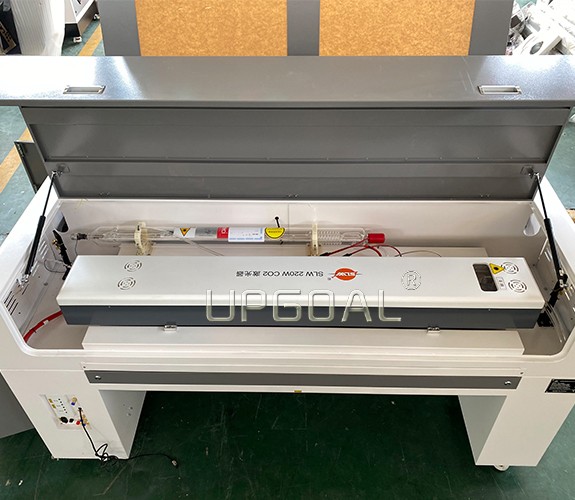

A1 head With famous SLW 220W folding Co2 laser tube, can for 2mm thickness stainless steel/carbon steel cutting, also can for thick metal non metal materials cutting.  A2 with Reci W2 90W Co2 laser tube, used for non-metal materials engraving & thin cutting.

3. With advanced embedded RuiDa 6332M DSP real-time laser cutting control system, running faster, laser intensity and speed automatic matching, perfectly realized the consistency of the corner cutting effect

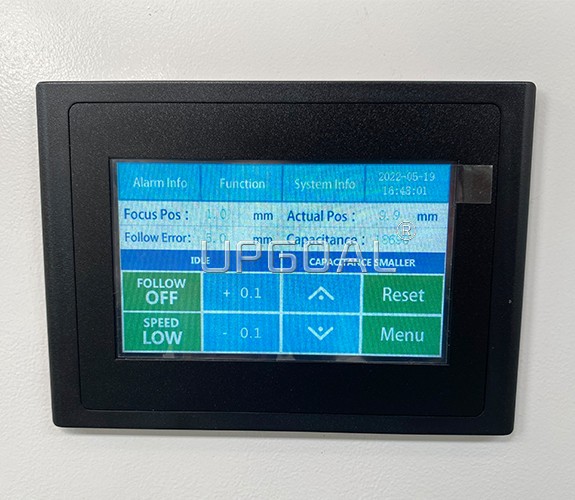

4. Specialized metal cutting using non-contact RuiDa live focusing system, ensuring same cutting quality for whole working table, no need further processing for the fracture section, high efficiency, long life time and more stable.

5. With auto height controller for laser head, can track the metal material surface and adjust suitable focus length, ensuring the cutting quality.


6. With RUIDA CCD Camera auto positioning, can do visual positioning, trademark cutting, image analysis. support feature recognition position positioning and MARK point auxiliary position positioning function,  improves the working efficiency.

Multi-graphic positioning and cutting at any angle, automatic identification of defective products, can achieve the effect of cutting along the edge, no yellow, no black, no burn, multiple graphics positioning and cutting at the same time

7. Working Table

Honey Comb Table: applicable to various soft materials with good adsorption effect and low reflection ratio.

Knife Strip Table:  With oxidation treatment and low reflection ratio Ensured cutting quality

Auto Lifting Table for more thickness materials:Maximum Loading 50kgs with 200mm up-down distance.

8. Adopting imported focus lens with high luminousness and mirror with high reflection ensure stable power transference and laser beam consistency.

9. Adopt 3phases Leadshine stepper driver with high dynamic response performance and loading capacity.

10. Imported High precision, low friction force and stand wear and CSK Taiwan linear square guide rails and blocks with 3M belt transmission ensured stable transmission, lower noise.

11. Rationalized placement of the electronic parts. Optimized heat dissipation effect. Ensured system stability and anti  jamming capability.

12. Teyu S&A Industrial water chiller CW-6000  is equipped to ensure the machine can work last long time.



Working area

1300*900mm

Laser Type

A1: Folding co2 tube

A2: Glass co2 laser tube

Laser tube power

A1: 220W(maximum 260W),SLW, China

A2; 90W( maximum 100W), Reci China

Working table

High strength knife strip and honey comb double working table

Auto lifting table

Up and down 300mm

Oxygen control system

Yes

Laser head

Automatic torch height controller laser head structure for metal materials

Driver mode

3 phase stepper motor and driver(Leadshine brand )

Guide rail

Linear square guide rail ( CSK,Taiwan)

Transmission

Belt(3M)

Control panel

English

Laser output control

1-100% software setting

Engraving speed

0-60000mm/min

Cutting speed

0-10000mm/min

Control system

RuiDa control system 6332M (Live focus system)

Control software

MetalCut & Rdworks V8

CCD camera

RuIDa SV300, USB port

Design software when delivery

CorelDraw

Control panel

DSP offline

Resolution accuracy

< 0.01mm

Location precision

< 0.01mm

Highest scanning accuracy

2500DPI

Type of cooling

Industrial chiller, CW-6000 (Teyu, S&A

Water protection system

Yes

Blow-off system

Air pump and air blower

Working temperature

0-45 °C

Operating humidity

5-95% (without condensed water)

Voltage

AC 220V/110V, 50/60Hz, single phase

Supporting picture format

PLTDSTDXFBMP, DWGAILAS,etc

Certificate

CE/FDA
