Applications

Applied to a certain of metal and non-metal materials Professional engraving/cutting such as stainless steel,carbon steel,wood,organic glass,plastic, cloth.

Widely used in the industry of Advertising, craft gift, shose, toys, garment, model, construction, package, paper and computerized embroidery &lipping.

Features

1. Welding machine bed with quenching treatment to remove away the stress .Milled by Large precision gantry milling machine ensured the accuracy.

2. Equipped with metal&non-metal laser cutting head. Stainless steel, carbon steel, acrylic and wood can be cut.

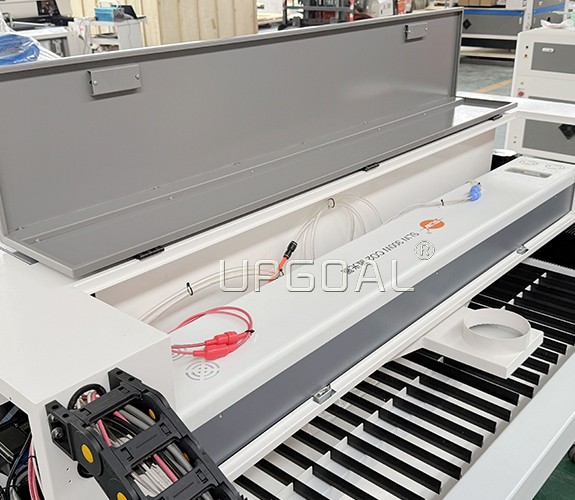

With famous SLW 300W/ 500W folding Co2 laser tube, can for 2-3.5mm thickness stainless steel/carbon steel cutting, also can for thick non metal material cutting.

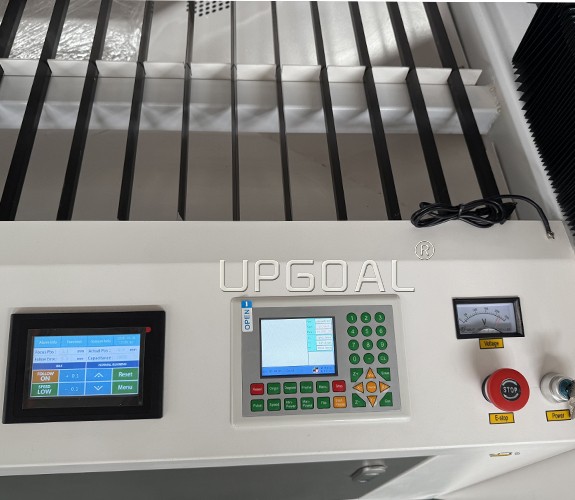

3. With advanced embedded RuiDa 6332M DSP real-time laser cutting control system, running faster, laser intensity and speed automatic matching, perfectly realized the consistency of the corner cutting effect

4. Specialized metal cutting using non-contact RuiDa live focusing system, ensuring same cutting quality for whole working table, no need further processing for the fracture section, high efficiency, long life time and more stable.

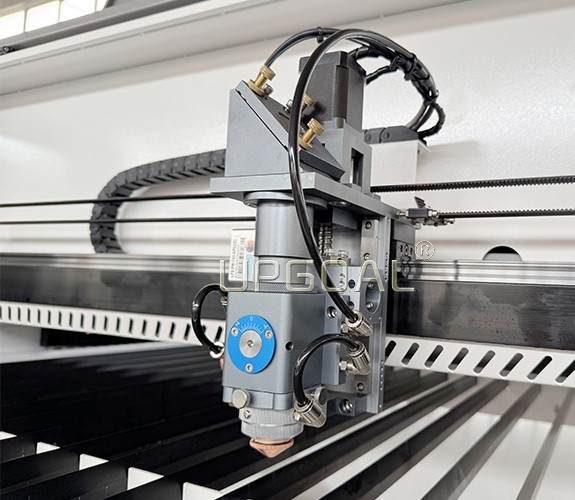

5. With auto height controller for laser head, can track the metal material surface and adjust suitable focus length, ensuring the cutting quality.

6. High strength knife strip cutting table, applicable for metal and non-metal cutting.

7. Adopting imported focus lens with high luminousness and mirror with high reflection ensure stable power transference and laser beam consistency.

8. Adopt 3phases YAKO stepper driver with high dynamic response performance and loading capacity.

9. Imported High precision, low friction force and stand wear andTaiwan CSK linear guide rails and blocks with 3M belt ensured stable transmission for X-axis, Y-axis with helical rack pinion transmission,  higher running speed and efficiency.

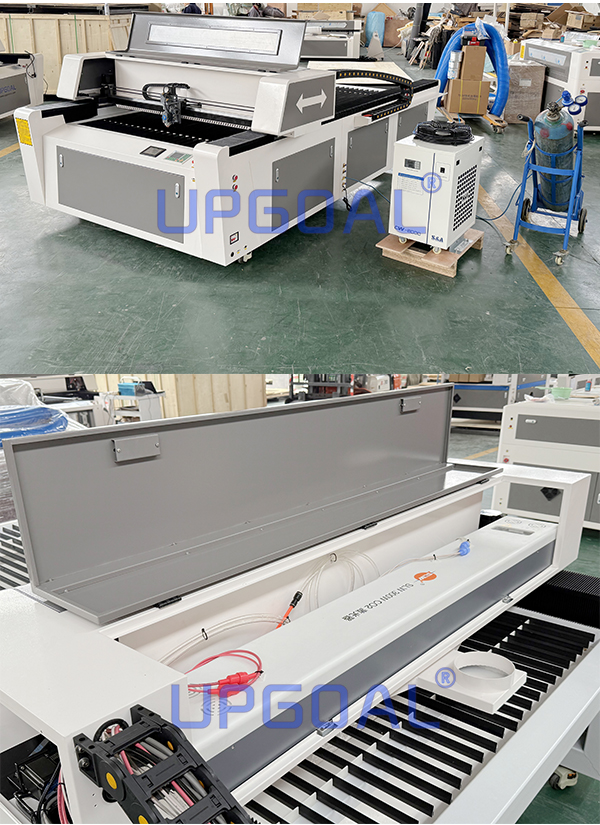

10. Teyu Industrial water chiller CW-6000 is equipped to ensure the machine can work last long time.

11. Rationalized placement of the electronic parts. Optimized heat dissipation effect. Ensured system stability and anti  jamming capability.
